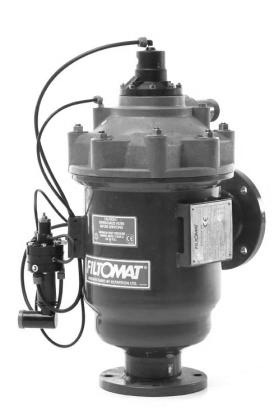

SUPER-T PLASTIC DISC FILTERS.
This technology uses plastic discs made of polypropylene that are stacked together under pressure and grooved to filter particles of specific micron sizes.

Super-T Disk Filters with Electric Backflush Valve (12VDC 2-Wire)

50mm Filter Pressure - 10 Bar Flowrate - 36 m3 per hour       Filtration Disks:          Yellow - 100 Micron (155 Mesh)          Brown - 250 Micron (60 Mesh)

80mm Filter Pressure - 10 Bar Flowrate - 60 m3 per hour       Filtration Disks:          Yellow - 100 Micron (155 Mesh)          Brown - 250 Micron (60 Mesh)

Super-T Disk Filters with Hydraulic Backflush Valve

50mm Filter Pressure - 10 Bar Flowrate - 36 m3 per hour       Filtration Disks:          Yellow - 100 Micron (155 Mesh)          Brown - 250 Micron (60 Mesh)

80mm Filter Pressure - 10 Bar Flowrate - 60 m3 per hour       Filtration Disks:          Yellow - 100 Micron (155 Mesh)          Brown - 250 Micron (60 Mesh)

Non-standard filtration disks available on request

Like screen and sand filters, disc filters have an automatic backwash cycle for self cleaning, which provides reduced maintenance. Another advantage to using a disc filter is that it uses much less water than other self cleaning filters that utilize backwash cycles.

Automatic self-cleaning disk filters lend themselves to many industrial, commercial and power generation cooling tower applications.
